UAC-D125-AF28M

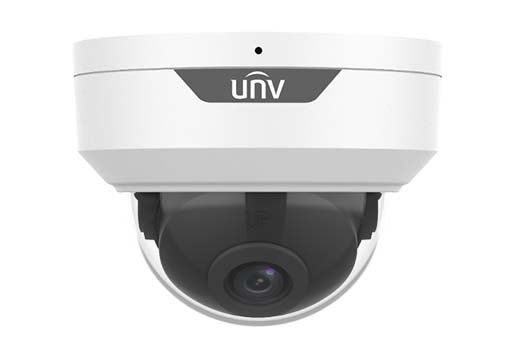

The Uniview UAC-D125-AF28M is a 5MP ColorHunter HD Fixed Dome Analog Camera, engineered to deliver vibrant, high-resolution full-color surveillance around the clock, even in extremely low-light or completely dark environments. This versatile camera is an excellent choice for both indoor and outdoor security applications, offering broad compatibility with a wide range of analog security systems.

Key Features:

• 5MP High-Resolution Imaging: Equipped with a 1/2.7″ CMOS sensor, this camera captures sharp and highly detailed 5-megapixel (2592 x 1944) resolution video at up to 20 frames per second (or 4MP/1080P at 25/30fps). This provides significantly more forensic detail than lower-resolution cameras.
• ColorHunter Technology for 24/7 Color: Features two powerful built-in white-light illuminators that provide supplementary lighting up to 40 meters (131 feet). This proprietary technology enables the camera to capture vivid full-color images even in complete darkness, providing crucial details and enhancing identification capabilities that traditional black-and-white night vision cannot.
• 4-in-1 Output Compatibility: Offers exceptional versatility by supporting multiple mainstream analog video formats: HD-TVI, HD-CVI, AHD, and CVBS. This ensures seamless integration with a wide range of existing DVRs and security systems, simplifying upgrades and replacements.
• Built-in Microphone: A high-quality microphone is integrated directly into the camera, allowing for audio transmission over coaxial cables (AoC). This significantly simplifies installation by eliminating the need for separate audio wiring and provides valuable audio context to your video surveillance.
• Wide-Angle Fixed 2.8mm Lens: The 2.8mm fixed lens provides a wide 101.3° horizontal field of view, ensuring extensive coverage of the monitored area with fewer cameras. This focal length is ideal for general surveillance where a broad overview is needed.
• Enhanced Image Processing: Includes advanced features to optimize image quality in various challenging lighting conditions:
  • DWDR (Digital Wide Dynamic Range): Balances exposure in scenes with both very bright and very dark areas, ensuring clarity across the entire image.
  • 2D/3D Digital Noise Reduction (DNR): Reduces image noise for cleaner, sharper video, especially crucial in low-light environments.
  • BLC (Backlight Compensation) and HLC (Highlight Compensation): Optimizes exposure to prevent over or underexposure in challenging lighting situations.
  • Digital Defog: Improves image clarity by reducing the effects of fog or haze.
• Robust & Weatherproof Design: With an IP67 rating, the camera is highly resistant to dust and water ingress, making it suitable for reliable outdoor operation in diverse and harsh weather conditions (operating temperature from -30°C to 60°C).
• Vandal-Resistant: The dome design provides a degree of tamper resistance, making it suitable for locations where the camera might be exposed to vandalism attempts.
• OSD Menu & Flexibility: Features an On-Screen Display (OSD) configuration menu available in 11 languages, allowing for easy and precise adjustment of camera settings. It also supports 180° horizontal and vertical flip for flexible mounting options.
• Surge Protection: Built-in 4kV surge protection for both power and video interfaces helps safeguard the camera from electrical surges, enhancing its longevity and reliability.
• Durable Construction: Features a metal housing, ensuring robust durability and protection against the elements and potential tampering.
• Easy Installation: Designed for ceiling or wall mounting, with various optional junction boxes and wall mount brackets available for different installation scenarios.

The Uniview UAC-D125-AF28M is an excellent choice for users who require high-resolution, full-color surveillance around the clock, even in challenging lighting conditions, combined with the added benefit of integrated audio monitoring, robust outdoor/vandal-resistant design, and broad compatibility within an analog camera system.
